1.2Components and accessories
Part number
Description
A ECU70TSOCO
Hecu CO2 controller, 230Vac,RTC, 2 unipolar EEV,
connector kit, no BMS, FLSMTDMCUTU
AECU70TS0D0
Hecu CO2 controller,230Vac,RTC, 2 unipolar EEV,
connector kit, no BMS, with plastic cover,FLSMTDMCUTU
AECU80TSOCO
Hecu CO2 controller,24Vac, RTC, 2 unipolar eev,
connector kit, no BMS, FLSMTDMCUTU
AECU80TS0D0
Hecu CO2 controller,24Vac,RTC, 2 unipolar EEV,
connector kit, no BMS, with plastic cover,FLSMTDMCUTU
A PSD101021A

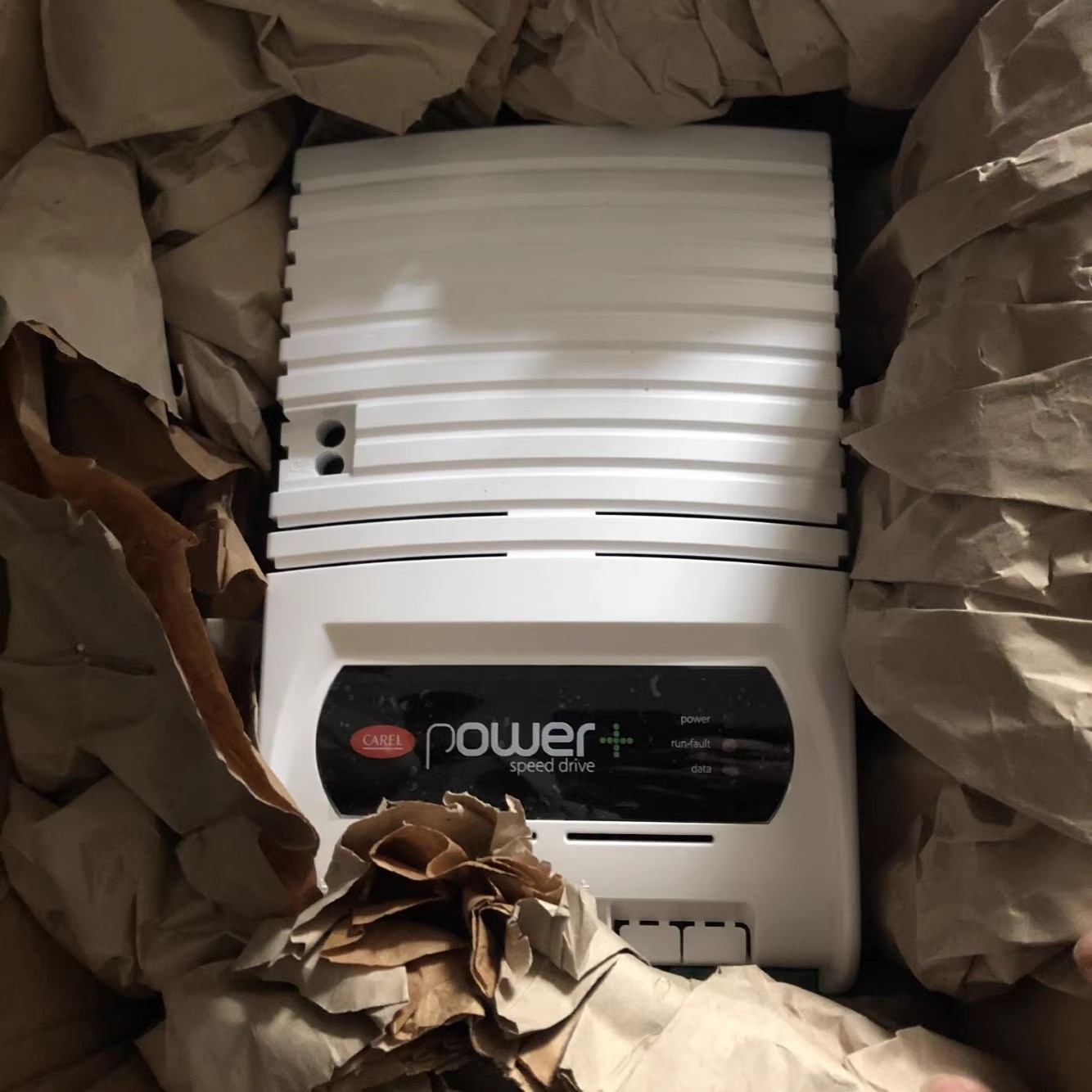

Power+ 10 A, 200-240Vac 1Ph,IP00
A PSD1012200
Power+ 12 A, 200-240 Vac 1Ph,IP20/IP44
A PSD1016200
Power+ 16 A, 200-240Vac 1Ph,IP20/IP44
A PSD1018400
Power+ 18 A, 280-480Vac 3Ph,IP20/IP44
A PS20012204110
POWER+ 12 A, 200-240Vac 1PH, IP20 PEC
A PS20015204110
POWER+ 15 A, 200-240Vac 1PH, IP20/IP44 PEC
A PS20018404110
POWER+ 18 A, 380-480Vac 3PH, IP20/IP44 PEC
A PS20012204100
POWER+ 12 A, 200-240Vac 1PH,IP20
A PS20015204100
POWER+ 15 A, 200-240Vac 1PH,IP20/IP44
A PS20018404100
POWER+ 18 A, 380-480Vac 3PH,IP20/IP44
A PSACH10100
Coil for POWER+ 18 A
M E2V**CS1C0
Electronic expansion valve E2V**-C 13-13S.
Steel high pressure without electrical coil
M E2VSTA03*0
Unipolar stator coil with cable *m
M E2VFILO100
Filter kit for valve E2VBSF (conn.diam. 12 ODF) 10 pcs
M SPKT00H8C0
Press.Trasd. 4-20mA 0..120 barg (0...1740psig) sealed gage
8-28V packard 1/4 gas male
M SPKT00D8C0
Press.Trasd. 4-20 mA 0...150 barg (0...2175 psig) sealed gage
8-28V packard 1/4 gas male
A SPKTOOL1SO
Press.Trasd. 0-5V0...90 barg sealed gage packard 1/4 gas F
M SPKC002310
Cable AWG 3 wires l=2m for SPKTpackard vulcanised -IP67
M NTC0**HT41
IP55,** m cable,0T150°c, multiple package (10 pcs)
M NTC0**HF01
IP67,** m cable, fast readingNTC probe strap-on plastic
O NTC0**WH01
Wh NTC sensor IP68-50T105 cable**m
A PGDEH31FXO
pGDe terminalHecu LOGO,pLAN version
A PLD00GFPO0
PLDPro LCD neutral, 132x64 pixels, pLAN version
M S90CONN00*
Connection cable between terminal and pCO²,l=*m
O PCOS004850
Opto-isolated RS485 serial connection card for pCO sistema
O PCOS0OSO30
Fastening bracket for RS485/Lon/RS232 serial card
1.1一般特征
Hecu CO2是一套控制系统，用于对配有BLDC压缩机的R744冷
凝机组进行全面管理。由MPXPRO/UltraCella和CAREL EEV膨
胀阀控制的冷凝单元和蒸发器之间的串联连接是该解决方案的
主要特点之一，有助于提高整个系统的能效和可靠性。控制板
专为DIN导轨装配而设计，配有插入式螺钉端子，以及用于管
理两个电子膨胀阀的驱动器。用户终端(PGDe或pLDpro)也
可用于系统的维护或调试。
主要特点:
·用变频器调节无刷直流压缩机的制冷量;
·定速备用压缩机的管理;
两台调节风机的管理;
·卡里尔单极阀内置驱动器;
单极高压阀(HPV)的管理;
单极闪蒸阀的管理;
与蒸发器串行通信(最多5台);
RS485串口用于BMS;
浮吸压力设定点;
浮动冷凝压力设定值;
压缩机标定喷油量的改进算法
压缩机回油时的转速提升;
·回油至压缩机的油回收冲洗;
大量的除霜功能配置;
·吸、排过热控制;
·报警器配置丰富。
卡乐电子膨胀阀驱动器...
